MER3-810-36G3M-P-UV F02
MER3-810-36G3M-P-UV F02
MER3-810-36G3M-P-UV F02 camera is a UV GigE Vision camera with the Sony “Pregius S” CMOS sensor designed for the wavelength between 200nm to 1100nm. MER3-810-36G3M-P-UV is capable of 2.5Gbit/s maximum transfer data rate, and has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for camera. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY3 cameras can secure the reliability of cameras deployed in harsh environments.
Features
- The Sequencer Control supports multiple sets of parameters configuration
- Binning, Decimation, Gamma, Digital Shift and Black Level
- Burst Acquisition
- Timer, Counter, LUTs and User Set Control

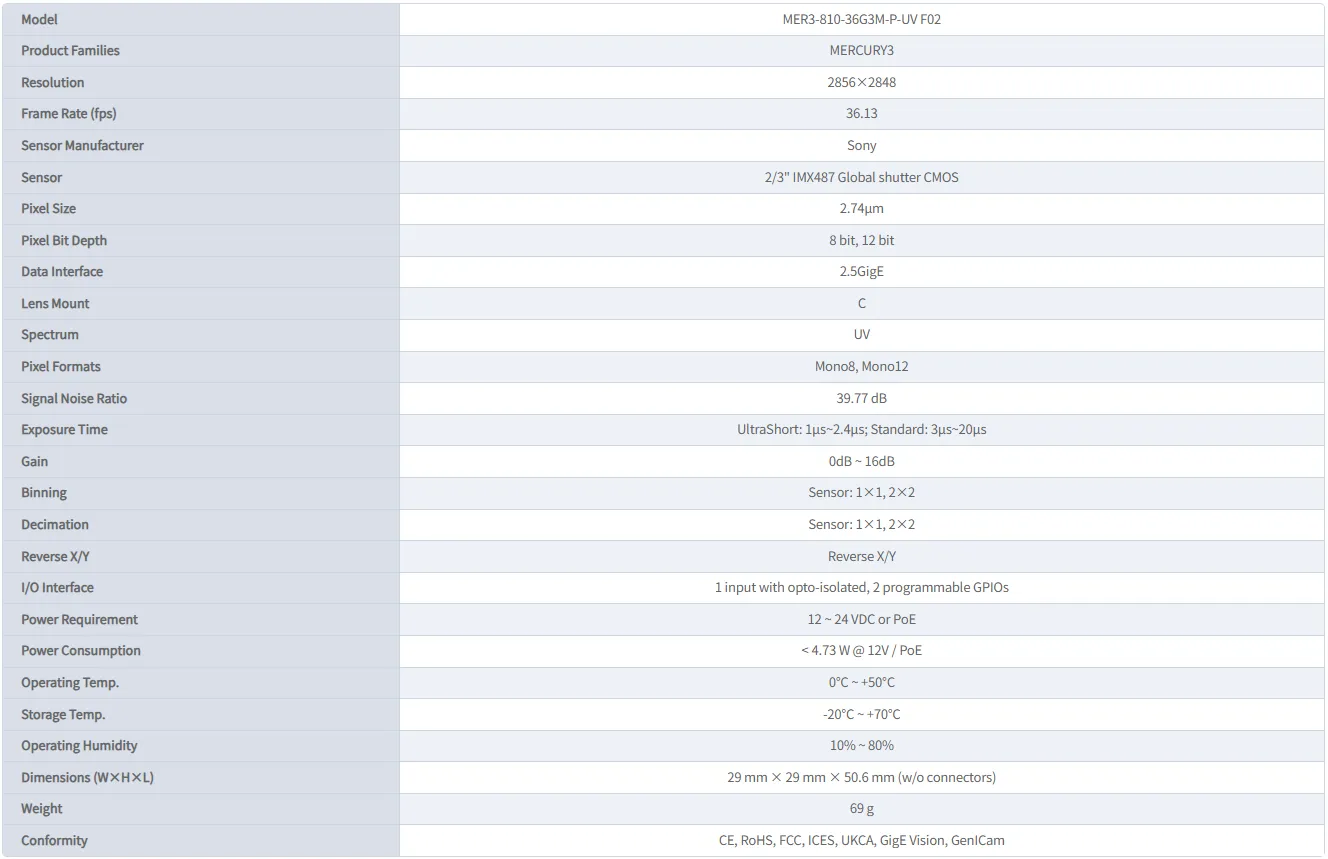

Specifications

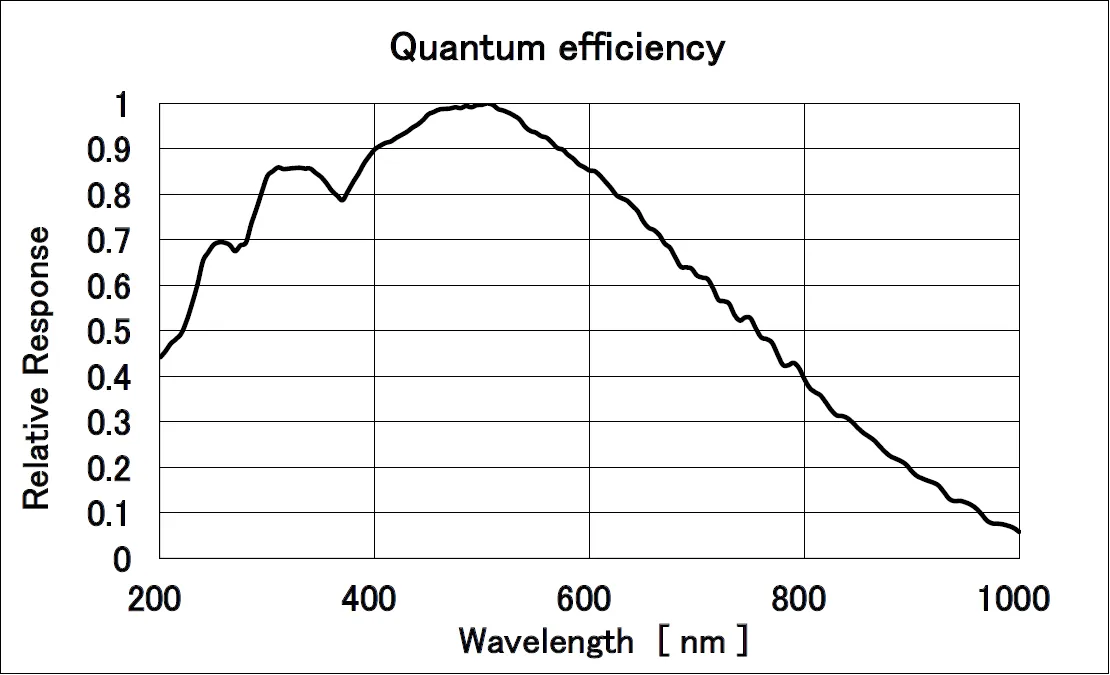

Spectral Response
MER3-810-36G3M-P-UV F02
