MER3-321-91G3M-P-SWIR F02
MER3-321-91G3M-P-SWIR F02
The MER3-321-91G3M-P-SWIR F02 camera is a SWIR GigE Vision camera with Sony IMX993 global shutter CMOS sensor and high performance FPGA. The MER3-321-91G3M-P-SWIR F02 camera is capable of 2.5Gbit/s maximum transfer data rate, and has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation fexibility for camera. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY3 cameras can secure the reliability of cameras deployed in harsh environments.
Features
- The Sequencer Control supports multiple sets of parameters configuration
- Trigger mode: Frame Start /Frame Burst Start
- Two exposure modes: Standard / UltraShort
- Decimation, Gamma, Digital Shift, Black Level and Burst Acquisition
- Timer, Counter, LUTs and User Set Control
- Support Remove Parameter Limit to expand the range of exposure, gain and so on
- 512KB data storage area for saving algorithm coefficients and parameter configuration

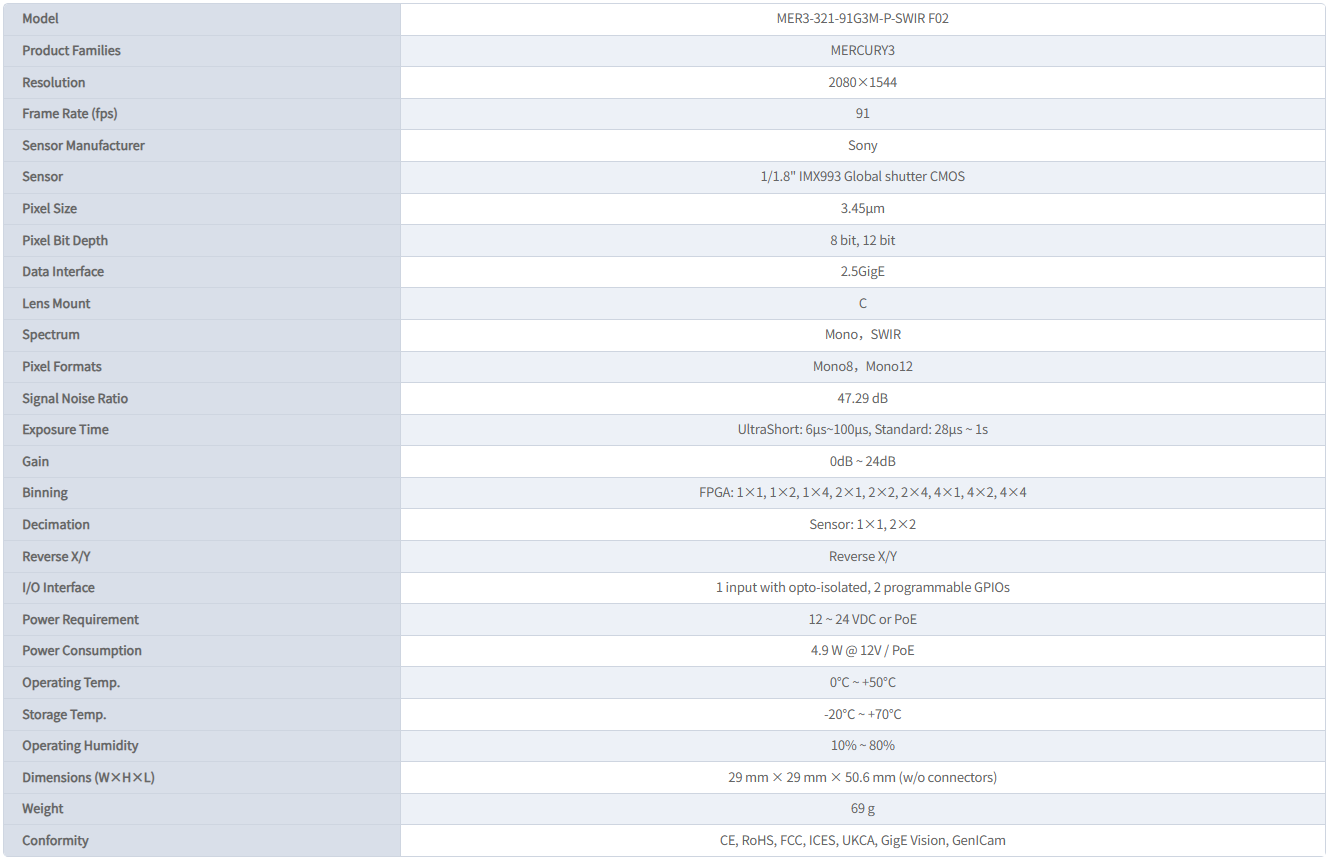

Specifications

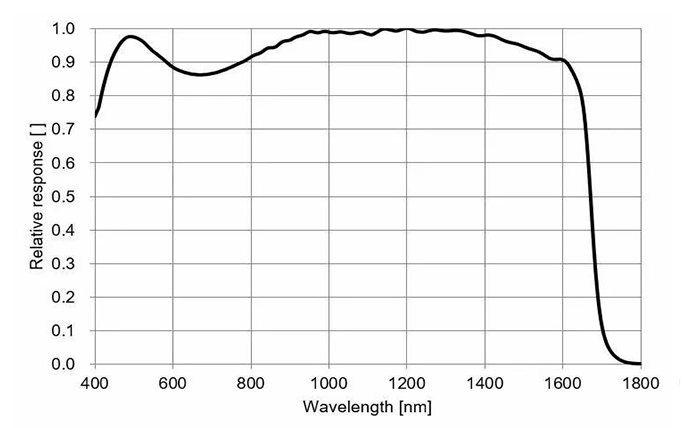

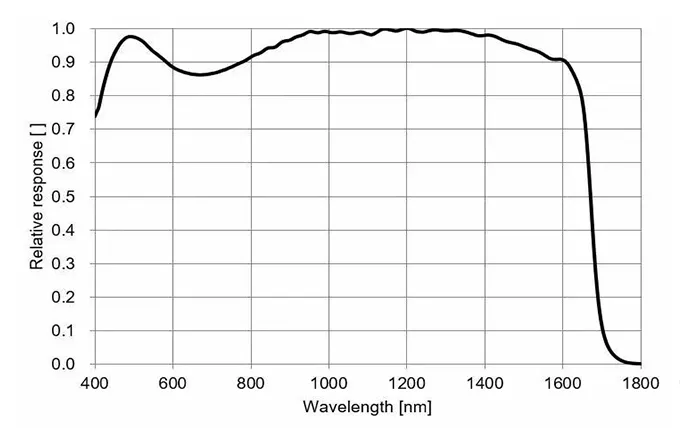

Spectral Response
MER3-321-91G3M-P-SWIR F02
