MER3-1220-24G3M/C-P
MER3-1220-24G3M-P
The MER3-1220-24G3M-P camera is a monochrome GigE Vision camera with the Sony IMX226 rolling shutter CMOS sensor and high performance FPGA. The MER3-1220-24G3M-P camera is capable of 2.5Gbit/s maximum transfer data rate, and has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for camera. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY3 cameras can secure the reliability of cameras deployed in harsh environments.
Features
- Two trigger types: FrameStart / FrameBurstStart
- Decimation, Gamma, Digital Shift and Black Level
- Burst Acquisition
- Support NoiseReduction
- Timer, Counter, LUTs and User Set Control

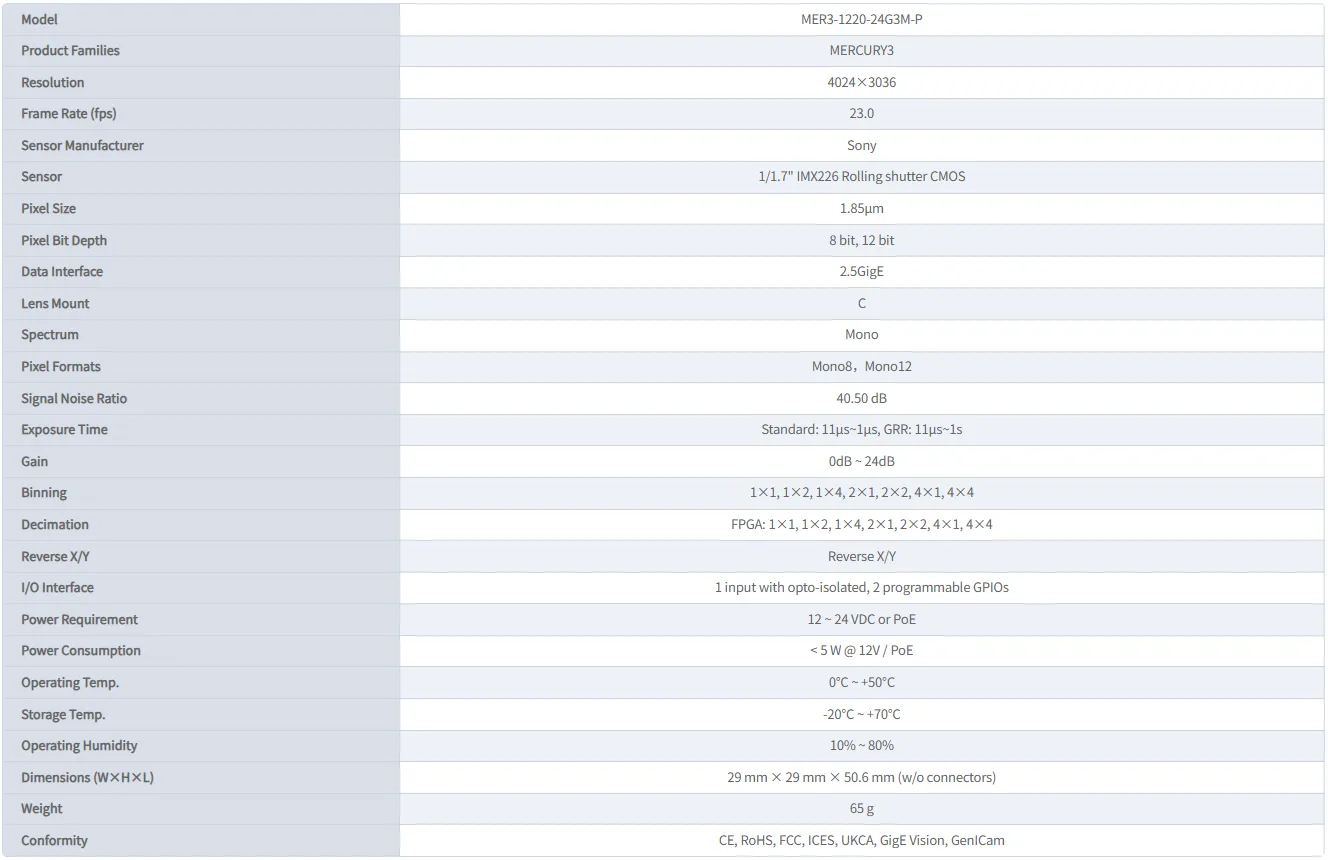

Specifications

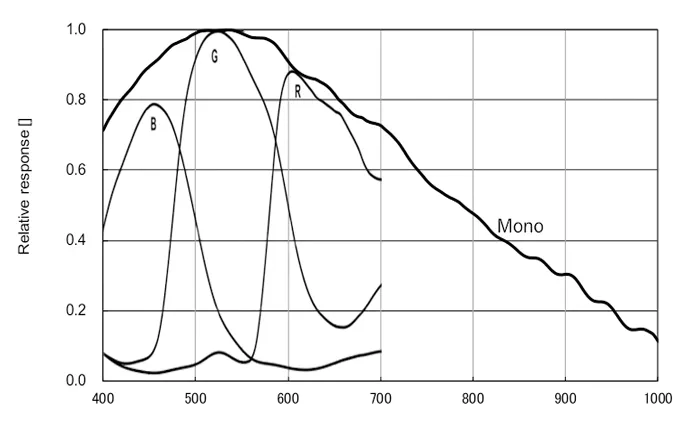

Spectral Response
MER3-1220-24G3M-P
