MER3-033-262G3M-P-SWIR F02
MER3-033-262G3M-P-SWIR F02

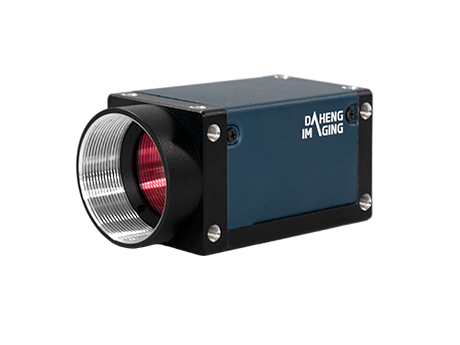

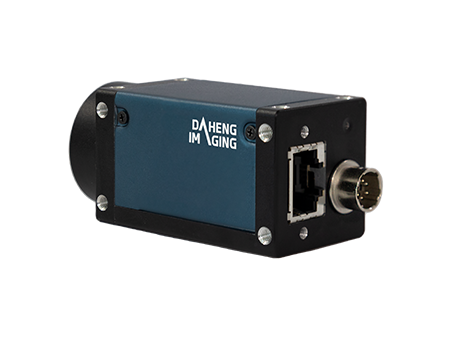

The MER3-033-262G3M-P-SWIR F02 camera is a SWIR GigE Vision camera with Sony IMX991 global shutter CMOS sensor and high performance FPGA. The MER3-033-262G3M-P-SWIR F02 camera is capable of 2.5Gbit/s maximum transfer data rate, and has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for camera. Thanks to the extremely compact (29mm × 29mm), robust metal housings and locking screw connectors, the MERCURY3 cameras can secure the reliability of cameras deployed in harsh environments.
Features
- The Sequencer Control supports multiple sets of parameters configuration
- Decimation, Gamma, Digital Shift and Black Level
- Burst Acquisition
- Timed exposure mode and TriggerWidth exposure mode
- Two exposure modes: Standard / UltraShort
- Timer, Counter, LUTs and User Set Control

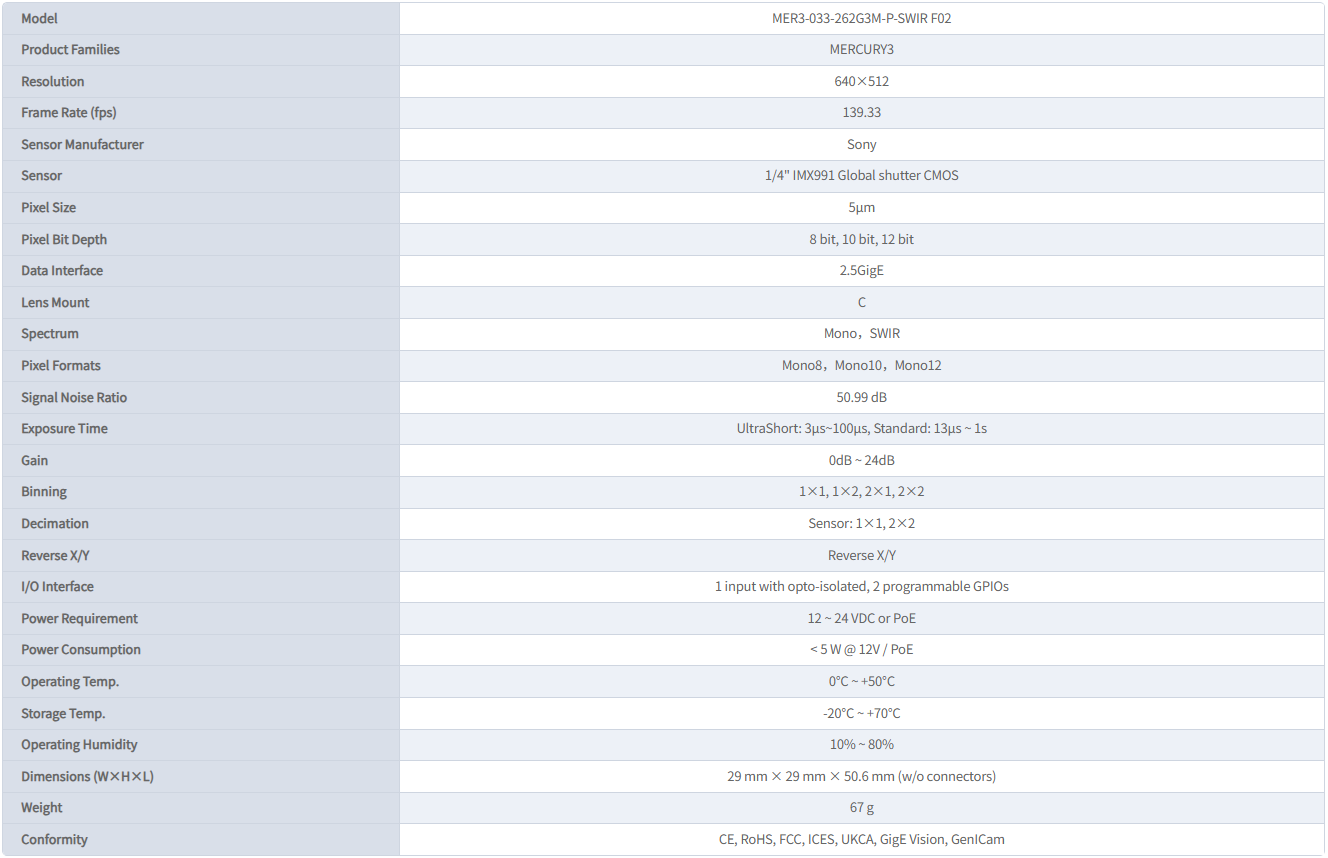

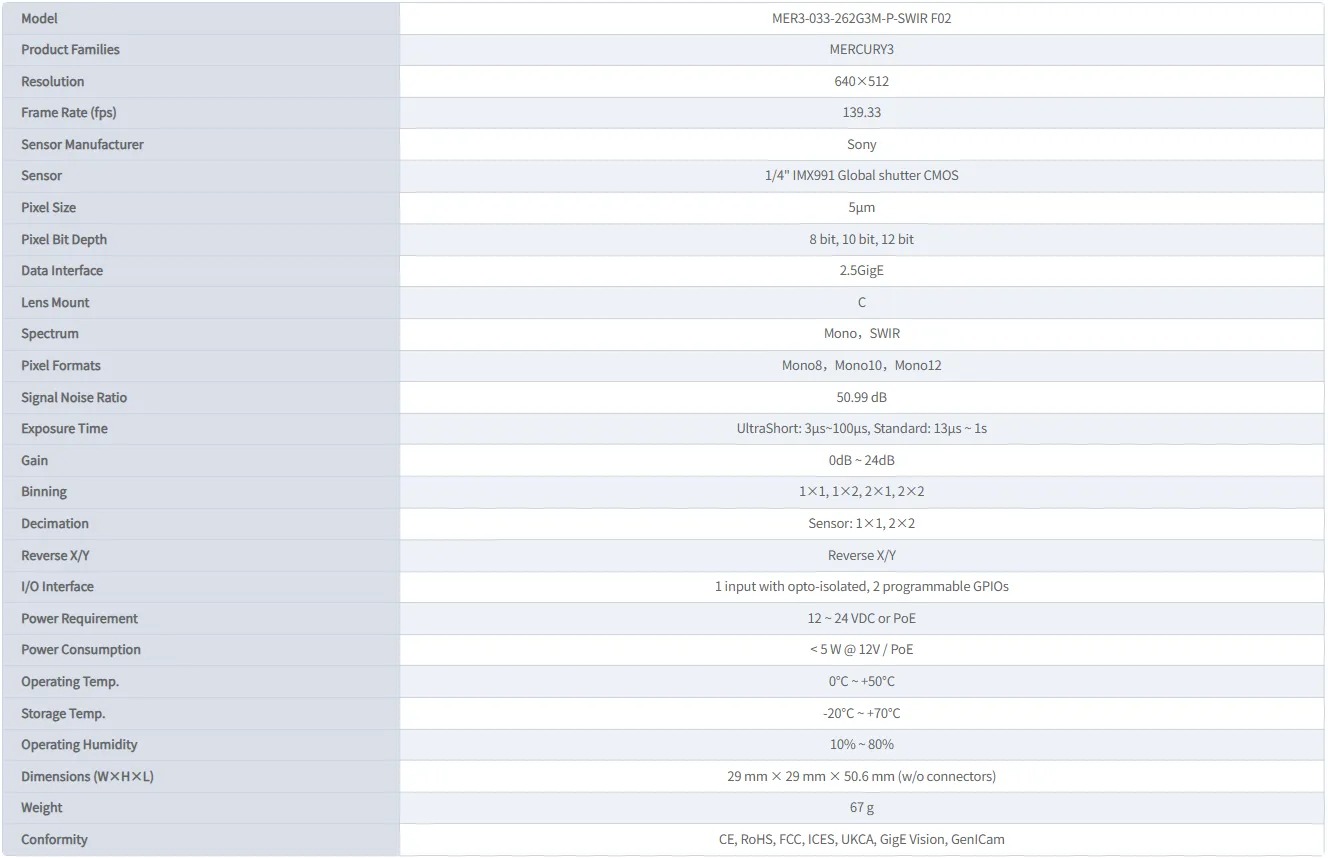

Specifications

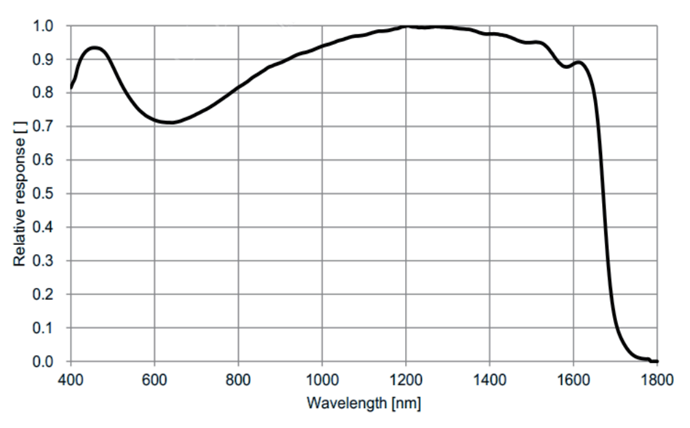

Spectral Response
MER3-033-262G3M-P-SWIR F02
