ME2P-1230-9GM/C-P
Large sensor GigE industrial digital camera with high definition
The MERCURY2 PRO PoE series (ME2P-G-P) camera is DAHENG IMAGING’s large sensor industrial digital camera, featuring outstanding performance, compact design and flexible installation.
ME2P-1230-9GM/C-P is a monochrome/color GigE Vision camera with the Sony IMX304 CMOS sensor. The ME2P-1230-9GM/C-P cameras has opto-isolated I/Os that adapt to specific needs. Four-side mounting holes provide maximum installation flexibility for ME2P-G-P. Thanks to the extremely compact design (36mm × 31mm × 50.6mm), locking screw connectors, the MERCURY2 PRO PoE series cameras can secure the reliability of cameras deployed in harsh environments.
Featuring compact design, outstanding performance, ease of installation and use, the MERCURY2 PRO cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
- Power over Ethernet (IEEE802.3af compliant)
- Programmable ROI, increased frame rate with partial scan
- Gain, exposure and white balance programmable (white balance only for color models)
- Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
- Three acquisition controls: Continuous acquisition/Software trigger acquisition/External trigger acquisition
- 12-bit or 8-bit Mono/Bayer output
- Support LUTs and storable user sets
- Support ExposureEnd Event notification
- Adjustable packet-size and packet-delay, and reserved bandwidth
- Provide mounting holes on four surfaces for flexible installation
- Robust full metal housing and optional lockable devices
- Long cable lengths: up to 100 m (without any hubs, repeaters etc.)
- Compatible with GenICam™ and GigE Vision®, can be used in a wide range of 3rd-party software such as HALCON, MERLIC and LabVIEW directly
- Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
- Multiple samples and easy-to-integrate SDKs for various programming tools
- Regulations: CE, RoHS, GenICam, GigE Vision, IEEE802.3af (PoE)

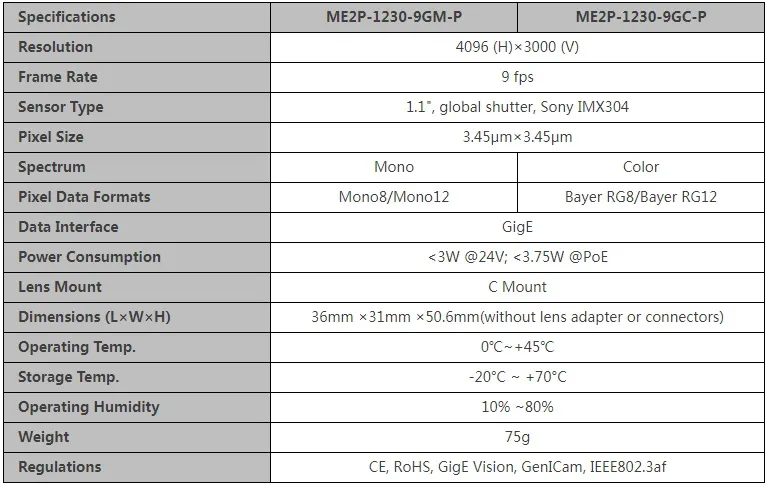

Specifications
Spectral Response
ME2P-1230-9GM-P Spectral Response

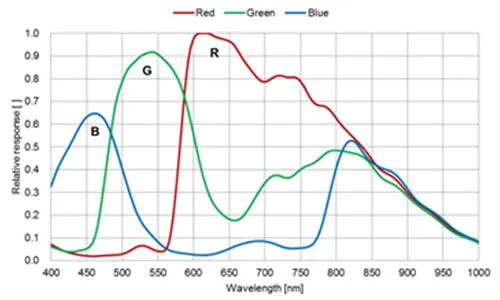

ME2P-1230-9GC-P Spectral Response
