Industrial Camera



Large sensor GigE PoE industrial digital camera

The MARS GigE PoE series (MARS-G-P) camera is DAHENG IMAGING’s large sensor industrial digital camera, featuring high resolution, high definition and low noise.

MARS-3140-3GM/C-P is a monochrome/color GigE Vision camera with the Sony IMX342 CMOS sensor. The Gigabit Ethernet interface is used for long distance transmission. The MARS series camera can be powered over Ethernet and has opto-isolated I/Os. Thanks to the locking screw connectors, the MARS series can secure the reliability of cameras deployed in harsh environments. The MARS cameras are industrial digital cameras with high reliability and high price/performance ratio.

Thanks to its robust housings, outstanding performance, ease of installation and use, the MARS cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.


  • Power over Ethernet (IEEE802.3af compliant)
  • Operating mode: single frame acquisition, continuous acquisition, software trigger acquisition and external trigger acquisition
  • Trigger mode: Frame Start /Frame Burst Start
  • Support LUTs and storable user sets
  • Support Decimation, Binning, Reverse, Digital Shift and Black Level
  • Support Color Enhancement for improving image quality (only for color models)
  • Adjustable Gamma and Sharpness for optimizing the brightness and sharpness of images
  • Support Defect Pixel Correction and Flat Field Correction
  • Support Timer and Counter
  • Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
  • Adjustable packet-size and packet-delay
  • 16KB data storage area for saving algorithm coefficients, parameter configuration, and so on.
  • Compatible with GenICam™ and GigE Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, GigE Vision, IEEE802.3af (PoE)

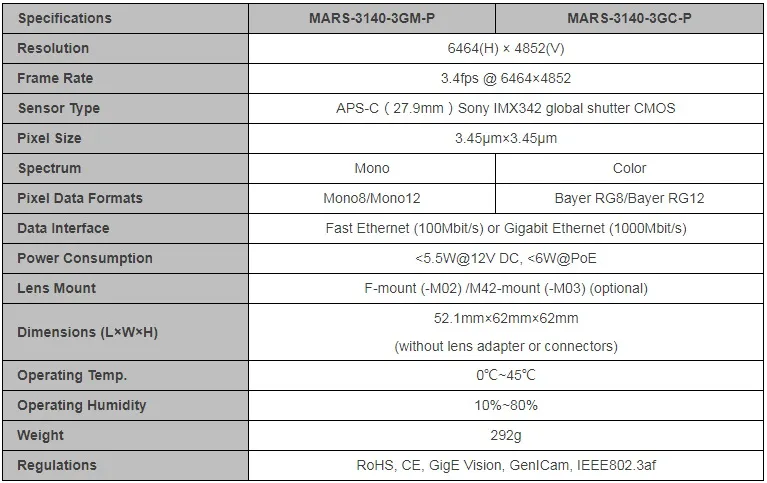

Optical Specifications

Spectral Response

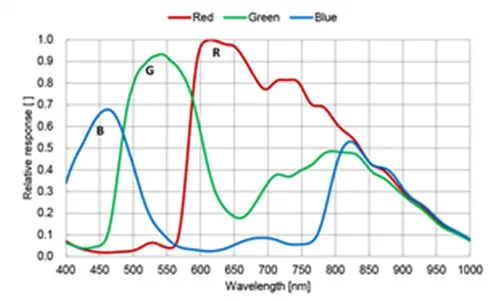

MARS-3140-3GC-P Spectral Response

MARS-3140-3GM-P Spectral Response
