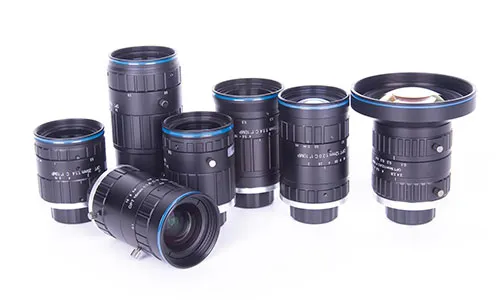

10MP Fixed Focal Length Lenses

หมวดหมู่:

Product Features

  • High resolution
    Compatible with most 10MP industrial cameras, and 12MP cameras[1] of ≥ 3.45μm pixel size and max. 1.1″ sensor
  • Low distortion
    Total distortion < 0.8%, min. distortion as low as 0.1%
  • Floating focus design[2]
    It allows the capture of high quality images at different distances

[1] OPT-C0824-10M/OPT-C1220-10M/OPT-C1616-10M: Max compatible with 1″ sensor.
[2] OPT-C5024-10M & OPT-C7528-10M are not included.

Selection Guide

Lens model

Model Lens Interface Working Distance (mm) Download document
OPT-C0824-10M C 100~∞ Download document
OPT-C1220-10M C 100~∞ Download document
OPT-C1616-10M C 100~∞ Download document
OPT-C2514-10M C 200~∞ Download document
OPT-C3514-10M C 160~∞ Download document
OPT-C5024-10M C 550~∞ Download document
OPT-C7528-10M C 600~∞ Download document

Features

Resolution Comparison

Image taken by OPT-C2514-10M

Circuit inspection

Applications

Metal piece flatness inspection

Glass crack detection

Inspection for glue on battery surface

Inspection for silicone
