OPT-C5024-10M
Product Features
- High resolution optical design, resolution is up to 140lp/mm.
- Relative distortion is below 0.1%.
- Suitable for 1.1″ image circle and under of sensor.
Features
Resolution Comparison
Image taken by OPT-C2514-10M
Image taken by other lens

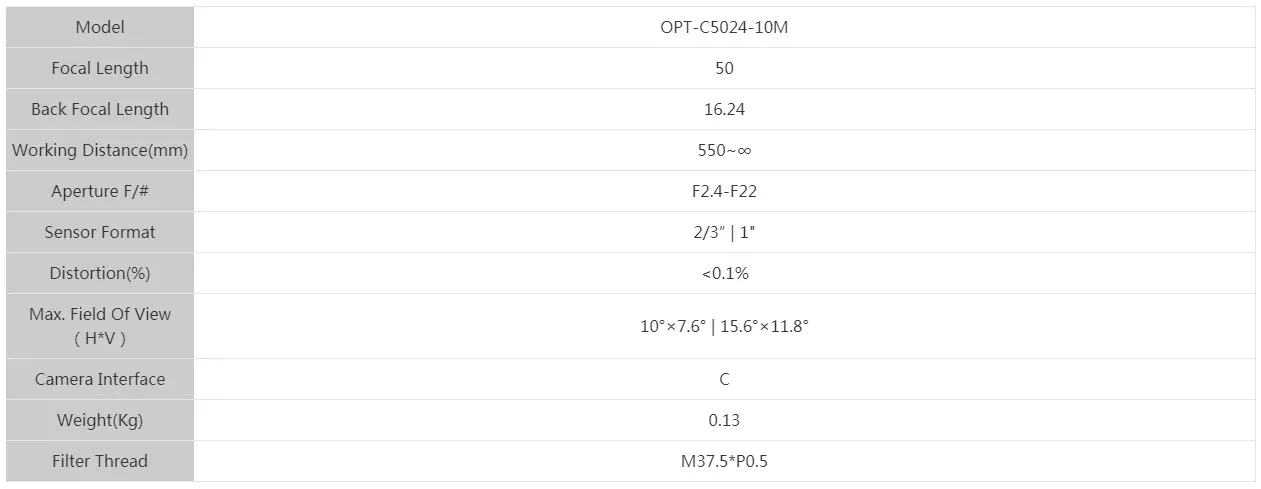

Specifications
Size

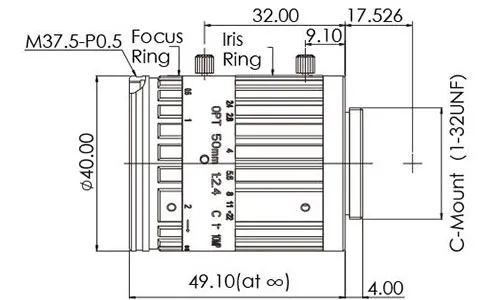

Dimensions (mm)
OPT-C5024-10M
Applications

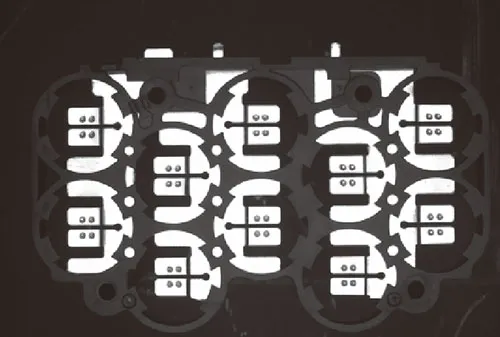

Metal piece flatness inspection

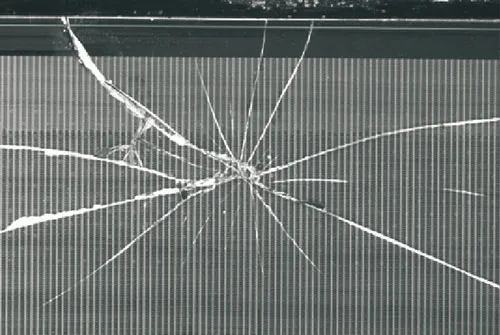

Glass crack detection

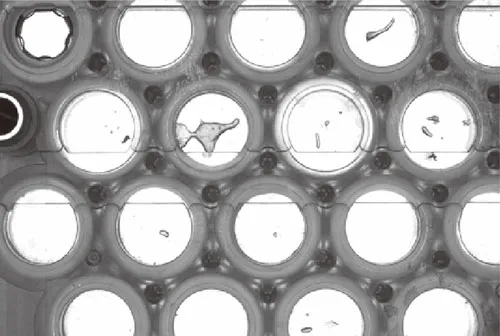

Inspection for glue on battery surface

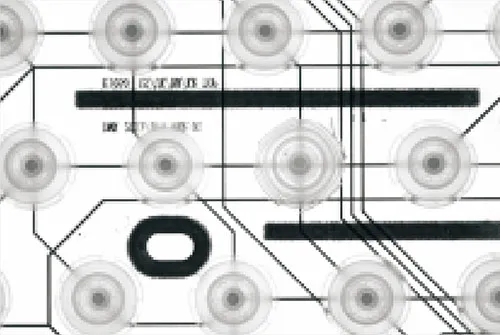

Inspection for silicone
