OPT-VHK120/5.8-1.0X
Product Features
- High resolution optical design, compatible to line scan camera with 3.5um pixel.
- Relative distortion is below 0.01%.
- Broad spectrum range is from 400 to 900nm and achromatic design.
- Suitable for 63mm image circle and under of line and area scan camera.
Features
Resolution Comparison
Image taken by OPT-VHK 120/5.8-1.0X
Image taken by other lens

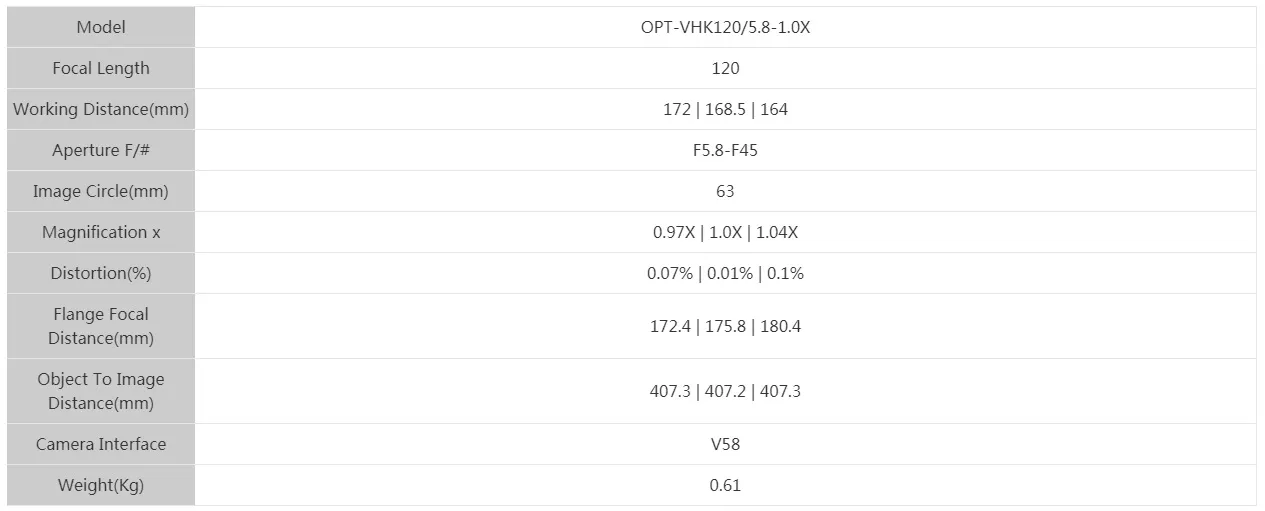

Specifications
Size

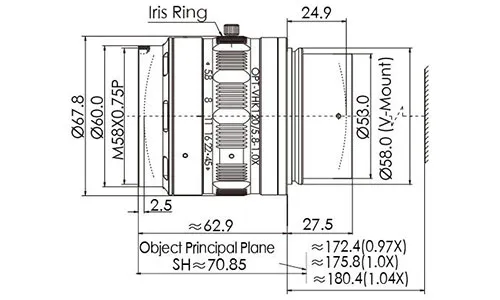

Dimensions (mm)
OPT-VHK120/5.8-1.0X
Applications
FPC locating and cutting
Capacitor surface inspection
Film hole inspection on mobile cover
Barcode reading on PCB
