OPT-VHK116/5.4-0.67X
Product Features
- High resolution optical design, compatible to line scan camera with 7.0um pixel
- Relative distortion is below 0.018%
- Broad spectrum range is from 400 to 900nm and achromatic design
- Suitable for 63mm image circle and under of line and area scan camera
Features
Resolution Comparison
Image taken by OPT-VHK 120/5.8-1.0X
Image taken by other lens

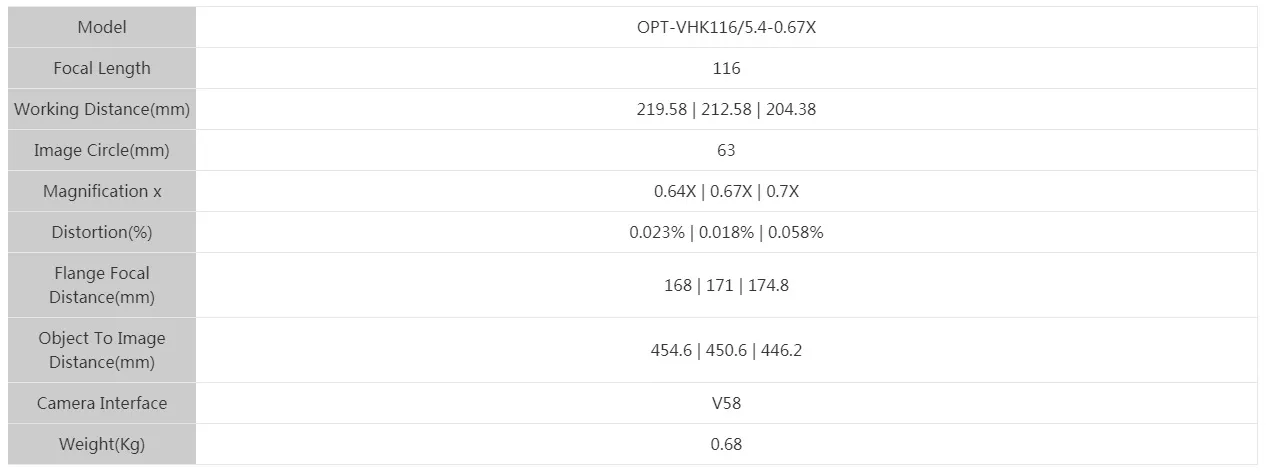

Specifications

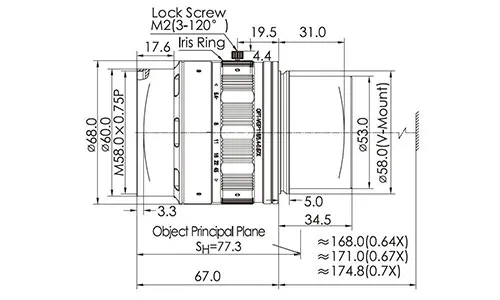

Size
Dimensions (mm)
OPT-VHK116/5.4-0.67X
Applications
FPC locating and cutting
Capacitor surface inspection
Film hole inspection on mobile cover
Barcode reading on PCB
