OPT-C1618-5M
Product Features
- High resolution optical design, resolution is up to 140lp/mm
- Relative distortion is below 0.2%
- Suitable for 2/3″ image circle and under of sensor
Features
Resolution Comparison
Image taken by OPT-C2514-5M
Image taken by other lens

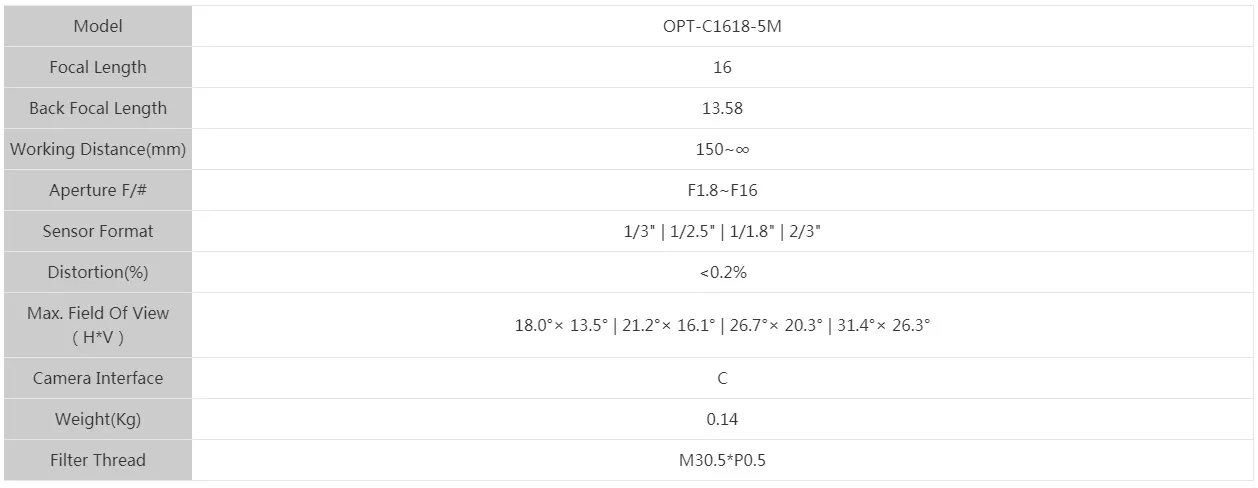

Specifications
Size

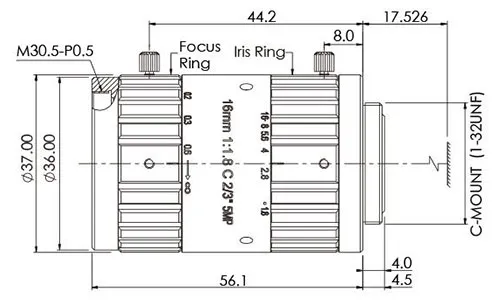

Dimensions (mm)
OPT-C1618-5M
Applications
Magnet defect detection
Circuit inspection
Lens surface inspection
OCR for capacitor
