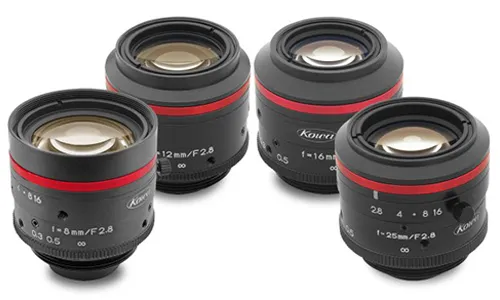

JC5MC Series
High Resolution FA/MV Lenses
Feature
- One of the industry’s smallest and lightest 5 megapixel lenses.
- Roughly half the size of Kowa’s current 2/3” 5MP JC5M2 series lenses.
- Unique mechanical design to guard against strong vibration and shock.
- Easy to change the iris to the marked F-number by click-type iris mechanism. (F2.8, 4, 5.6, 8 and 16)
Specification
| Model | 4/3 | 1.1 | 1 | 1/1.2 | 2/3 | 1/1.8 | 1/2 | 1/3 | Focal Length | Iris Range (F-stop) | Focusing Range (m) | Mount | Field Angle (H×V) | Size (mm) (∞) |
| LM8JC5MC | – | – | – | – | ● | ● | ● | ● | 8 | F2.8〜F16 | 0.15〜∞ | C | 57.6×44.4 | Φ32×27 |
| LM12JC5MC | – | – | – | – | ● | ● | ● | ● | 12 | F2.8〜F16 | 0.2〜∞ | C | 41.0×31.2 | Φ32×26.8 |
| LM16JC5MC | – | – | – | – | ● | ● | ● | ● | 16 | F2.8〜F16 | 0.2〜∞ | C | 30.9×23.4 | Φ32×26.5 |
| LM25JC5MC | – | – | – | – | ● | ● | ● | ● | 25 | F2.8〜F16 | 0.2〜∞ | C | 20.0×15.0 | Φ32×25 |
