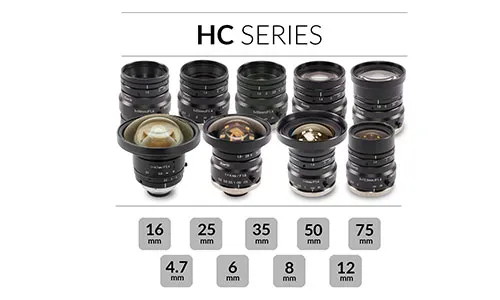

HC Series
Features
- Wide product range: 9 lenses in HC series
- Up to 5 megapixels performance
- Excellent corner brightness
- High performance compact lenses
- Low distortion
Specification
| Model | 4/3 | 1.1 | 1 | 2/3 | 1/1.8 | 1/2 | 1/3 | Focal Length | Iris Range (F-stop) | Focusing Range (m) | Mount | Field Angle (H×V) | Size (mm)(∞) |
| LM4HC | – | – | ● | ● | ● | ● | ● | 4.7 | F2.4〜F11 | 0.1〜∞ | C | 112.2×95.4 | Φ71×64.7 |
| LM6HC | – | – | ● | ● | ● | ● | ● | 6 | F1.8〜F11 | 0.1〜∞ | C | 96.8×79.4 | Φ54×56.2 |
| LM8HC | – | – | ● | ● | ● | ● | ● | 8 | F1.4〜F16 | 0.1〜∞ | C | 79.4×63.0 | Φ57×58 |
| LM12HC | – | ◇ | ● | ● | ● | ● | ● | 12.5 | F1.4〜F16 | 0.3〜∞ | C | 55.6×42.5 | Φ43×51.5 |
| LM16HC | – | ◇ | ● | ● | ● | ● | ● | 16 | F1.4〜F16 | 0.3〜∞ | C | 44.3×33.6 | Φ43×52.9 |
| LM25HC | – | ◇ | ● | ● | ● | ● | ● | 25 | F1.4〜F16 | 0.3〜∞ | C | 29.3×22.0 | Φ43×43 |
| LM35HC | – | ◇ | ● | ● | ● | ● | ● | 35 | F1.4〜F16 | 0.3〜∞ | C | 20.9×15.8 | Φ43×43 |
| LM50HC | – | ◇ | ● | ● | ● | ● | ● | 50 | F1.4〜F16 | 0.5〜∞ | C | 14.5×10.8 | Φ49×48 |
| LM75HC | – | ◇ | ● | ● | ● | ● | ● | 75 | F1.8〜F16 | 1.0〜∞ | C | 9.7×7.3 | Φ49×57 |
◇ : Suitable
