MER-502-79U3M POL
Ultra-small USB3.0 industrial polarization camera
The MERCURY USB3.0 series (MER-U3) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise, and compact design.
The MER-502-79U3M POL camera is a polarization camera with the Sony IMX250MZR CMOS sensor, and capture image of four different light directions simultaneously. Polarization camera can inspect reflective surface such as glass, metal which are difficult for monochrome or color camera. Thanks to the extremely compact, robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments.
The MER-502-79U3M POL camera is powered over the USB interface. The MER-502-79U3M POL camera has opto-isolated I/Os. The GPIOs give MER-U3 maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio.
The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
- USB3.0 interface with 10-bit or 8-bit Mono output
- Programmable ROI, increased frame rate with partial scan
- Gain and exposure programmable
- Support auto gain and auto exposure
- Flash sync for firing external lights at precisely the moment when exposure is performed
- Adjustable URB
- Software reset function
- Storable user sets
- Robust full metal housings and optional lockable devices
- Hot plugging available
- Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
- Optimized software package for lower CPU loads in host running 32/64bit Windows, support Linux, Android, ARMv7, ARMv8, etc.
- Multiple samples and easy-to-integrate SDKs for various programming tools
- Regulations: CE, RoHS, FCC, GenICam, USB3 Vision

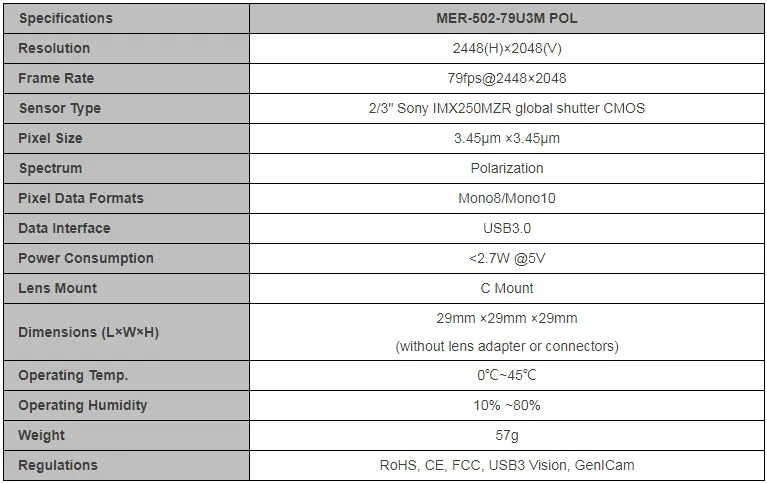

Specifications
Spectral Response
MER-502-79U3M POL Spectral Response
