MER-050-560U3C
Ultra-small USB3.0 industrial digital camera
The MERCURY USB3.0 series (MER-U3) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring outstanding performance, compact design, and extremely low noise.
The MER-050-560U3C camera is a color USB3 Vision camera with the Onsemi PYTHON 500 CMOS sensor. Thanks to the extremely compact (29mm×29mm×29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments.
The MER-050-560U3C camera is powered over the USB interface. The MER-050-560U3C camera has opto-isolated I/Os. The GPIOs give MER-U3 maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio.
The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
- USB3.0 interface with 10-bit or 8-bit Bayer output
- Programmable ROI, increased frame rate with partial scan
- Gain, exposure and white balance programmable
- Support auto gain, auto exposure and auto white balance
- Flash sync for firing external lights at precisely the moment when exposure is performed
- Adjustable URB
- Software reset function
- Storable user sets
- Support Decimation
- Robust full metal housings and optional lockable devices
- Hot plugging available
- Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
- Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, Android, ARMv7, ARMv8, etc.
- Multiple samples and easy-to-integrate SDKs for various programming tools
- Regulations: CE, RoHS, FCC, GenICam, USB3 Vision

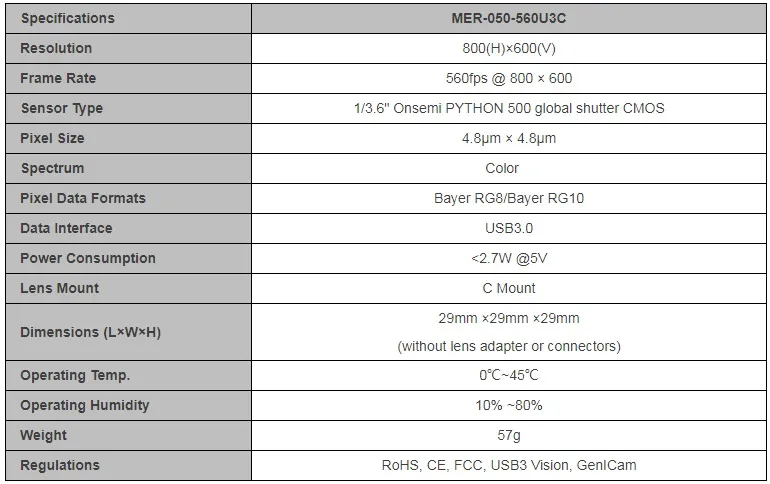

Specifications

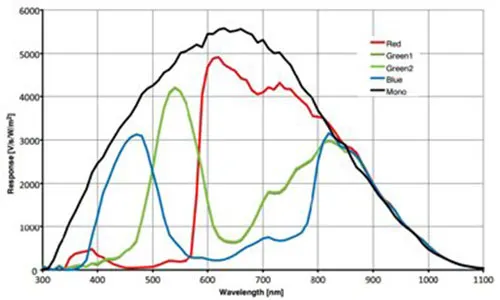

Spectral Response
MER-050-560U3C Spectral Response
