Daheng

Industrial Camera

MER-031-860U3M/C

หมวดหมู่:

Ultra-small USB3.0 industrial digital camera

The MERCURY USB3.0 series (MER-U3) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring outstanding performance, compact design, and extremely low noise.

The MER-031-860U3M/C camera is a monochrome/color USB3 Vision camera with the Onsemi PYTHON 300 CMOS sensor. Thanks to the extremely compact (29mm×29mm×29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments.

The MER-031-860U3M/C camera is powered over the USB interface. The MER-031-860U3M/C camera has opto-isolated I/Os. The GPIOs give MER-U3 maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio.

The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.

Features

  • USB3.0 interface with 10-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable URB
  • Software reset function
  • Storable user sets
  • Support reverse X/Y (horizontal and vertical mirroring only for mono models)
  • Support Decimation
  • Robust full metal housing and optional lockable devices
  • Hot plugging available
  • Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, Android, ARMv7, ARMv8, etc.
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, FCC, GenICam, USB3 Vision

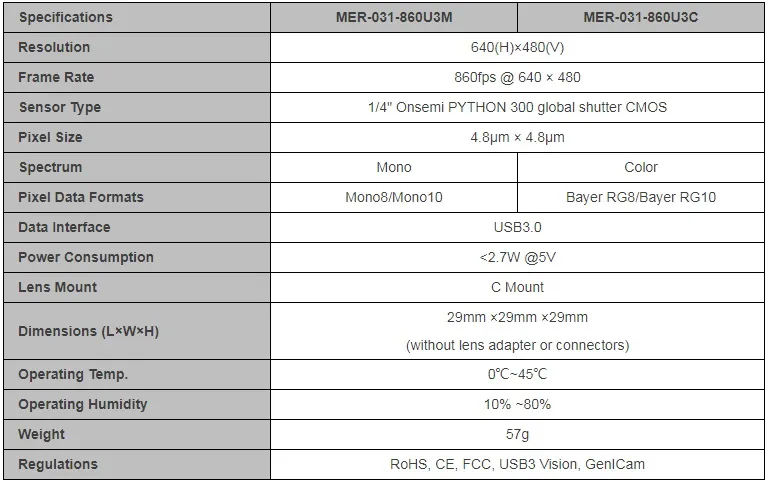

Specifications

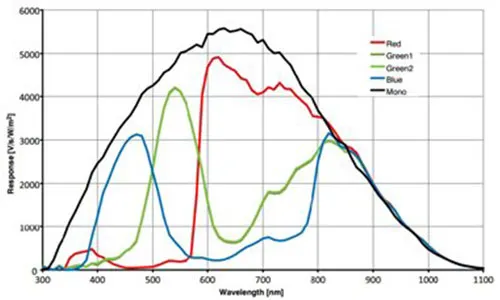

Spectral Response

MER-031-860U3M/C Spectral Response
