MER-503-36U3MC-L
Ultra-small USB3.0 industrial digital camera
The MERCURY USB3.0 series (MER-U3-L) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design.
The MER-503-36U3M/C-L camera is a monochrome/color USB3 Vision camera with the Sony IMX264 CMOS sensor. Thanks to the extremely compact (29mm×29mm×29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments.
The MER-503-36U3M/C-L camera is powered over the USB interface. Compared to the MER-503-36U3M/C, the MER-503-36U3M/C-L has no I/O interfaces, so it is lighter and handier. The camera has an outstanding price/performance ratio.
The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
- USB3.0 interface with 10-bit or 8-bit Mono/Bayer output
- Programmable ROI, increased frame rate with partial scan
- Gain, exposure and white balance programmable (white balance only for color models)
- Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
- Flash sync for firing external lights at precisely the moment when exposure is performed
- Adjustable URB
- Software reset function
- Support defect pixel correction
- Storable user sets
- Robust full metal housings and optional lockable devices
- Hot plugging available
- Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
- Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, Android, ARMv7, ARMv8, etc.
- Multiple samples and easy-to-integrate SDKs for various programming tools
- Regulations: CE, RoHS, FCC, GenICam, USB3 Vision

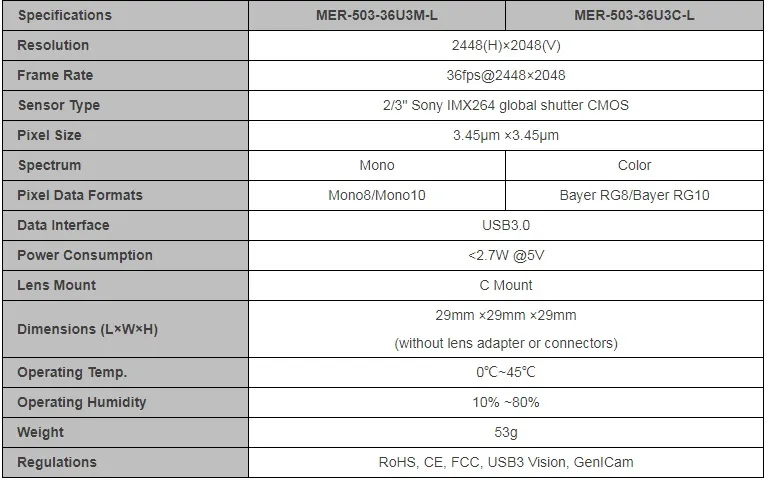

Specifications
Spectral Response
MER-503-36U3M-L Spectral Response

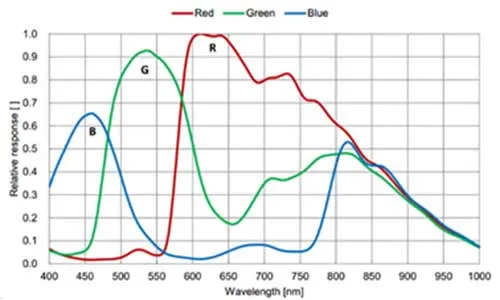

MER-503-36U3C-L Spectral Response
