ME2L-161-61U3M
Ultra-small USB3.0 industry digital camera
The MERCURY2 Lite USB3.0 series (ME2L-U3) camera is DAHENG IMAGING’s new generation area scan industrial digital camera, featuring low cost, high stability and extremely noise. Compared to the MER-U3 and MER2-U3 series cameras, the ME2L-U3 series camera is more compact and lighter. It’s a perfect choice for demanding requirements in the dimension and cost.
The ME2L-161-61U3M camera is a monochrome USB3 Vision camera with the Sony IMX296 CMOS sensor. The ME2L-161-61U3M camera has opto-isolated I/Os. The GPIOs give ME2L-U3 maximum flexibility to adapt to specific needs. Thanks to the compact design (29mm×29mm×28.1mm), robust metal housings and locking screw connectors, the ME2L-U3 cameras can secure the reliability of cameras deployed in harsh environments.
The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
- Programmable ROI, increased frame rate with partial scan
- Gain and exposure programmable
- Support auto gain and auto exposure
- Three acquisition controls: Continuous acquisition/ Software trigger acquisition/ External trigger acquisition
- Flash sync for firing external lights at precisely the moment when exposure is performed
- USB3.0 interface with 10-bit or 8-bit Mono output
- Storable user sets
- Support Reverse X/Y (horizontal and vertical mirroring)
- Adjustable URB
- 16KB data storage area for saving algorithm coefficients, parameter configuration, and so on
- Robust full metal housing and optional lockable devices
- Compatible with GenICam™ and USB3 Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
- Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
- Multiple samples and easy-to-integrate SDK for various programming tools
- Regulations: CE, RoHS, GenICam, USB3 Vision

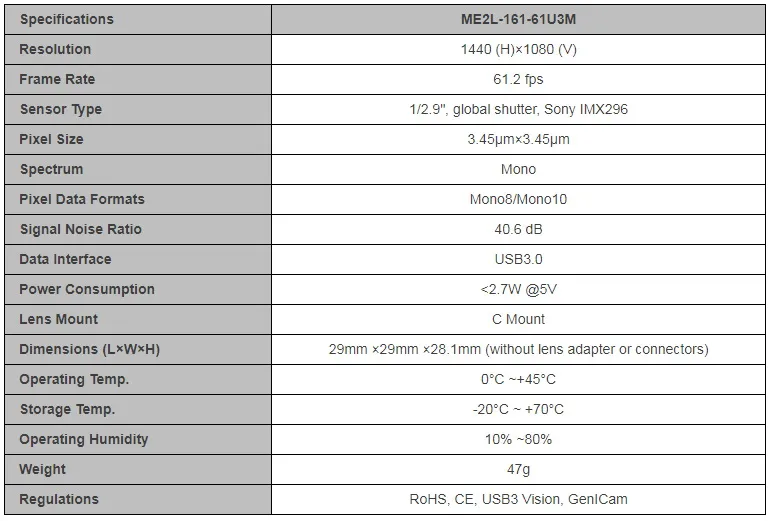

Specifications
Spectral Response
ME2L-161-61U3M Spectral Response
