ME2L-161-61U3M-L
Ultra-small USB3.0 industry digital camera
The MERCURY2 Lite USB3.0 series (ME2L-U3-L) camera is DAHENG IMAGING’s new generation area scan industrial digital camera, featuring low cost, high stability and extremely noise. Compared to the MER-U3-L and MER2-U3-L series cameras, the ME2L-U3-L series camera is more compact and lighter. It’s a perfect choice for demanding requirements in the dimension and cost.
The ME2L-161-61U3M-L camera is a monochrome USB3 Vision camera with the Sony IMX296 CMOS sensor. Thanks to the compact design (29mm×29mm×28.1mm), robust metal housings and locking screw connectors, the ME2L-U3-L series cameras can secure the reliability of cameras deployed in harsh environments. The ME2L-161-61U3M-L camera is powered over the USB interface. Compared to the ME2L-161-61U3M, the ME2L-161-61U3M-L has no I/O interfaces, so it is lighter and handier. The camera has an outstanding price/performance ratio.
The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
- Programmable ROI, increased frame rate with partial scan
- Gain and exposure programmable
- Support auto gain and auto exposure
- Two acquisition controls: Continuous acquisition/ Software trigger acquisition
- USB3.0 interface with 10-bit or 8-bit Mono output
- Storable user sets
- Support Reverse X/Y (horizontal and vertical mirroring)
- Adjustable URB
- 16KB data storage area for saving algorithm coefficients, parameter configuration, and so on
- Robust full metal housing and optional lockable devices
- Compatible with GenICam™ and USB3 Vision®, support 3rd-party software such as HALCON, MERLIC and LabVIEW
- Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
- Multiple samples and easy-to-integrate SDK for various programming tools
- Regulations: CE, RoHS, GenICam, USB3 Vision

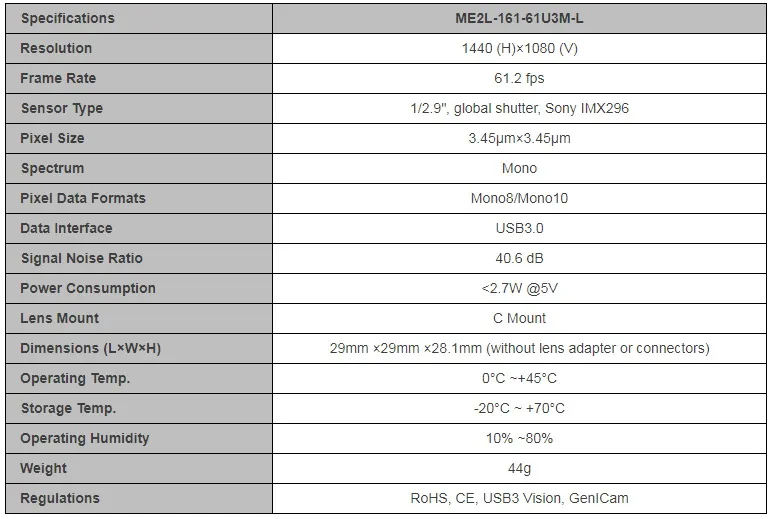

Specifications
Spectral Response
ME2L-161-61U3M-L Spectral Response
