Daheng

Industrial Camera

MER-310-12UC

หมวดหมู่:

Ultra-small USB industrial digital camera

The MERCURY USB2.0 series (MER-U) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise, and compact design.

The MER-310-12UC camera is a color USB camera with the Onsemi MT9T001 CMOS sensor. Thanks to the extremely compact (29mm×29mm×29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments.

The MER-310-12UC camera is powered over the USB interface. The MER-310-12UC camera has opto-isolated I/Os. The I/Os give MER-U maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio.

The MERCURY USB2.0 series camera is especially suitable for machine vision applications such as surface inspection, alignment, defect detection, measurement, OCR, bar code and data code reading and so on. They are also suitable for desktop applications, such as microscope and documents imaging.

Features

  • Programmable ROI (region of interest), increased frame rate with partial scan
  • Gain, exposure and white-balance control
  • Three acquisition controls: Continuous acquisition / Software trigger acquisition / External trigger acquisition
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Programmable acquisition speed level, optimize multi-cameras work simultaneity
  • Built-in encryption circuitry
  • Robust full metal housings and optional lockable devices
  • Hot plugging available
  • Compatible with GenICam™, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam

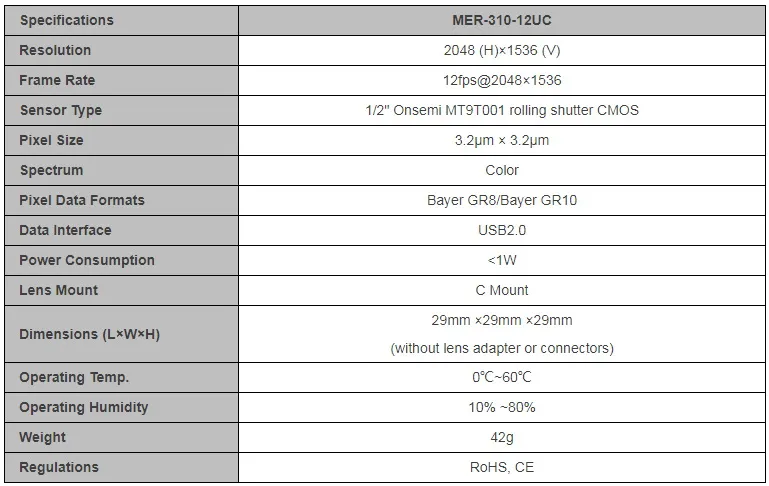

Specifications

Spectral Response

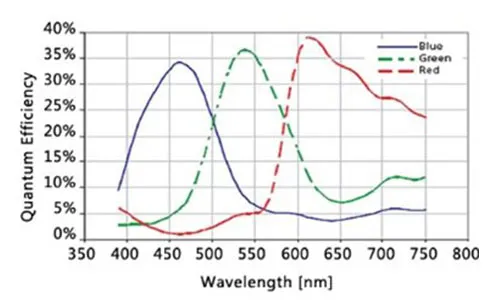

MER-310-12UC Spectral Response
