MER2-630-18GM/C-P
Ultra-small GigE industry digital camera
The MERCURY2 GigE PoE series (MER2-G-P) camera is DAHENG IMAGING’s new generation industrial digital camera .With improved built-in ISP algorithms, MER2-G-P series camera supports Decimation, Digital Shift, Gamma and more features. Providing multiple acquisition controls, the camera can adapt to various vision applications.
The MER2-630-18GM/C-P camera is a monochrome/color GigE Vision camera with the Sony IMX178 CMOS sensor. Thanks to the compact design, robust metal housings and locking screw connectors, the MERCURY2 cameras can secure the reliability of cameras deployed in harsh environments. The MER2-630-18GM/C-P camera has opto-isolated I/Os. The GPIOs give MER2-G-P cameras maximum flexibility to adapt to specific needs.
The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
- Power over Ethernet (IEEE802.3af compliant)
- Programmable ROI, increased frame rate with partial scan
- Gain, exposure and white balance programmable (white balance only for color models)
- Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
- Four acquisition controls: Single frame acquisition / Continuous acquisition / Software trigger acquisition / External trigger acquisition
- Trigger mode: Frame Start /Frame Burst Start
- Support Decimation, Reverse X/Y, Digital Shift, Black Level and Defect Pixel Correction
- Support Global Reset Release Shutter exposure
- Adjustable Gamma and Sharpness for optimizing the brightness and sharpness of images
- Programmable LUTs and storable user sets
- Support Timer and Counter
- Support Remove Parameter Limit to expand the range of exposure, gain, white balance, and so on
- Adjustable packet-size and packet-delay, and reserved bandwidth
- 16KB data storage area for saving algorithm coefficients and parameter configuration
- Compatible with GenICamTM and GigE Vision®, can be used in a wide range of 3rd-party software such as HALCON,MERLIC and LabVIEW directly
- Optimized software package for 32/64bit Windows, and support Linux, ARMv7, ARMv8 and Mac OS
- Multiple samples and easy-to-integrate SDKs for various programming tools
- Regulations: CE, RoHS, GenICam, GigE Vision

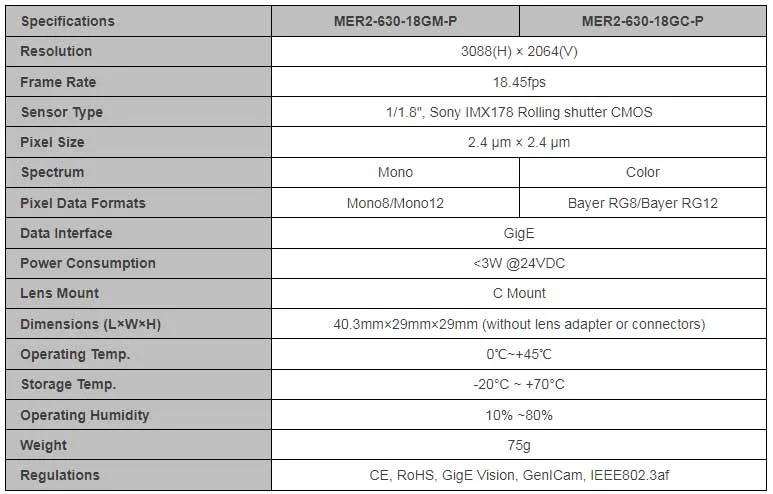

Specifications
Spectral Response
MER2-630-18GM-P Spectral Response
MER2-630-18GC-P Spectral Response
