MER-500-14GM/C
Ultra-small GigE industrial digital camera
The MERCURY GigE series (MER-G) camera is DAHENG IMAGING’s mature area scan industrial digital camera, featuring megapixel resolution, high definition, extremely low noise and compact design.
The MER-500-14GM/C camera is a monochrome/color GigE Vision camera with the ON MT9P031/MT9P006 CMOS sensor. Thanks to the extremely compact (29mm×29mm×29mm), robust metal housings and locking screw connectors, the MERCURY cameras can secure the reliability of cameras deployed in harsh environments.
The MER-500-14GM/C camera has opto-isolated I/Os. The GPIOs give MER-G maximum flexibility to adapt to specific needs. The camera has an outstanding price/performance ratio.
The MERCURY family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.
Features
- GigE interface with 10-bit or 8-bit Mono/Bayer output
- Programmable ROI, increased frame rate with partial scan
- Gain, exposure and white balance programmable (white balance only for color models)
- Support auto gain, auto exposure and auto white balance (auto white balance only for color models
- Support defect pixel correction
- Flash sync for firing external lights at precisely the moment when exposure is performed
- Adjustable packet-size and packet-delay, reserved bandwidth
- Programmable LUTs
- Storable user sets
- Support reverse X/Y (horizontal and vertical mirroring only for mono models)
- Robust full metal housing and optional lockable devices
- Long cable lengths: up to 100m(without any hubs, repeaters etc.)
- Compatible with GenICam™ and GigE Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
- Optimized software package for lower CPU loads in host running 32/64bit Windows, and support Linux, ARMv7, ARMv8, etc.
- Multiple samples and easy-to-integrate SDKs for various programming tools
- Regulations: CE, RoHS, FCC, GenICam, GigE Vision

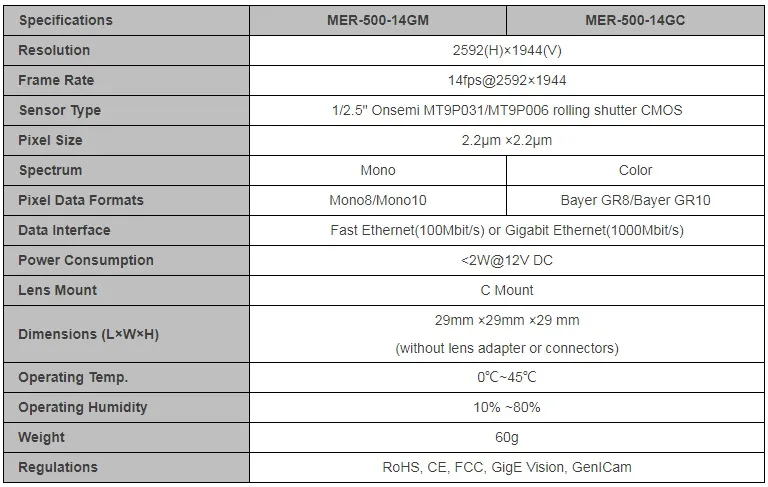

Specifications
Spectral Response
MER-500-14GM Spectral Response
MER-500-14GC Spectral Response
