OPT-VCT80/4.0-0.17X
Product Features
- High resolution optical design, compatible to line scan camera with 7um pixel
- Relative distortion is below 0.05%
- Broad spectrum range is from 400 to 900nm and achromatic design
- Suitable for 80mm image circle and under of line and area scan camera
Features
Resolution Comparison
Image taken by Coloretto
Image taken by other lens

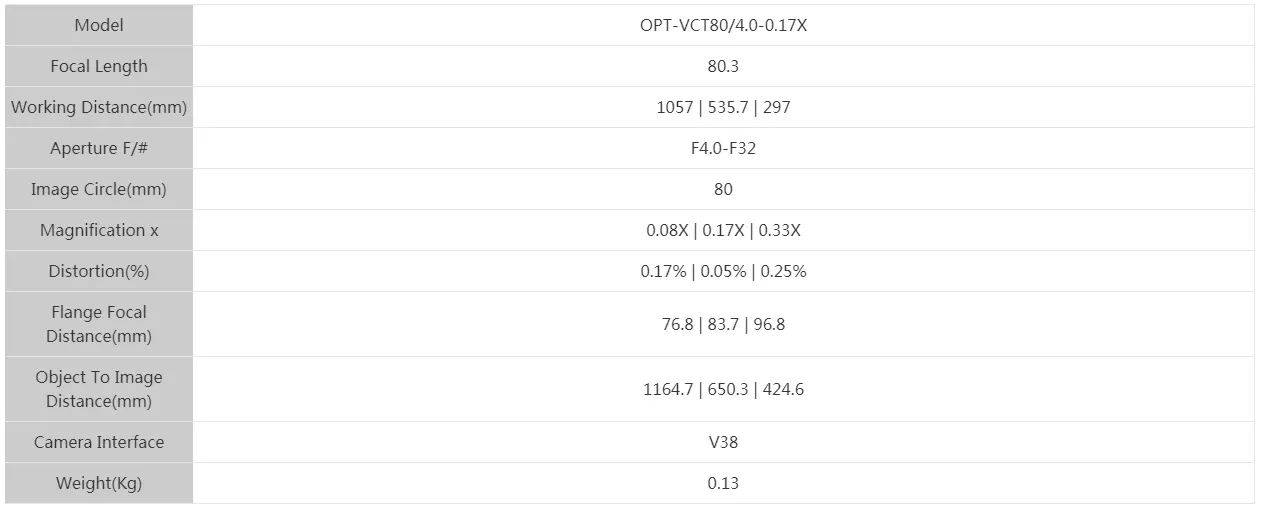

Specifications
Size

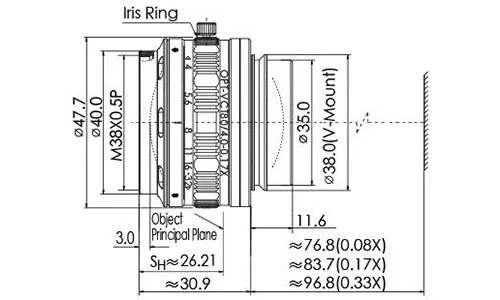

Dimensions (mm)
OPT-VCT80/4.0-0.17X
Applications
Inspection for mobile phone screen scratches
Burr inspection for LED chips
Plug surface inspection
Locating objects in a tray
