Industrial Camera



USB3.0 camera with 90 degree angle lens mount

The MERCURY2 USB3.0 series (MER2-U3) camera with 90 degree angle lens mount is DAHENG IMAGING’s new generation area scan industrial digital camera. Compared to MER-U3 and MER2-U3 with standard lens mount, MER2-U3 camera with 90 degree lens angle mount has more installation flexibility.

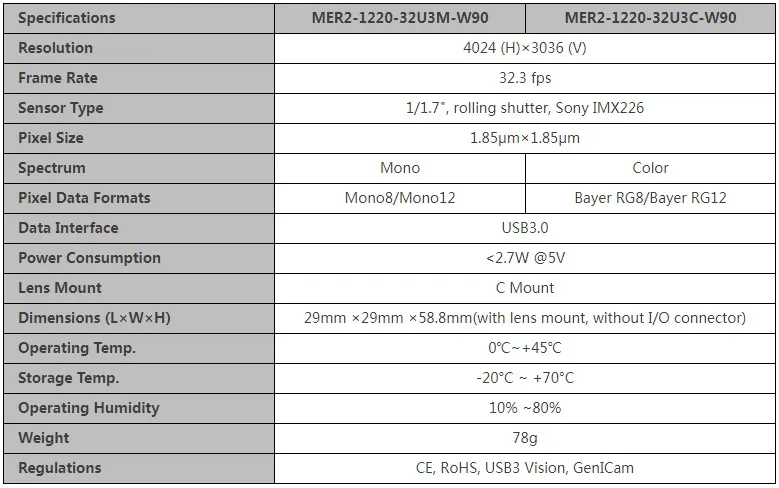

The MER2-1220-32U3M/C-W90 camera is a monochrome/color USB3 Vision camera with the Sony IMX226 CMOS sensor. Thanks to the compact design (29mm×29mm×58.8mm, including lens mount), robust metal housings and locking screw connectors, the MER2-1220-32U3M/C-W90 camera can secure the reliability of cameras deployed in harsh environments. The MER2-U3 cameras have opto-isolated I/Os, and the GPIOs give MER2-U3 camera maximum flexibility to adapt to specific needs.

The MERCURY2 family cameras are especially suitable for machine vision applications such as industrial inspection, medical, scientific research, education, security and so on.


  • USB3.0 interface with 12-bit or 8-bit Mono/Bayer output
  • Programmable ROI, increased frame rate with partial scan
  • Gain, exposure and white balance programmable (white balance only for color models)
  • Support auto gain, auto exposure and auto white balance (auto white balance only for color models)
  • Three acquisition controls: Continuous acquisition/ Software trigger acquisition/ External trigger acquisition
  • Flash sync for firing external lights at precisely the moment when exposure is performed
  • Adjustable URB
  • Software reset function
  • Storable user sets
  • 90 degree angle lens mount enables the camera to be angle installed in harsh environment
  • Robust full metal housing and optional lockable devices
  • Compatible with GenICam™ and USB3 Vision®, support a variety of 3rd-party software such as HALCON, MERLIC and LabVIEW
  • Optimized software package for 32/64bit Windows, and support Linux, Android, ARMv7 and ARMv8
  • Multiple samples and easy-to-integrate SDKs for various programming tools
  • Regulations: CE, RoHS, GenICam, USB3 Vision


Spectral Response

MER2-1220-32U3M-W90 Spectral Response

MER2-1220-32U3C-W90 Spectral Response
